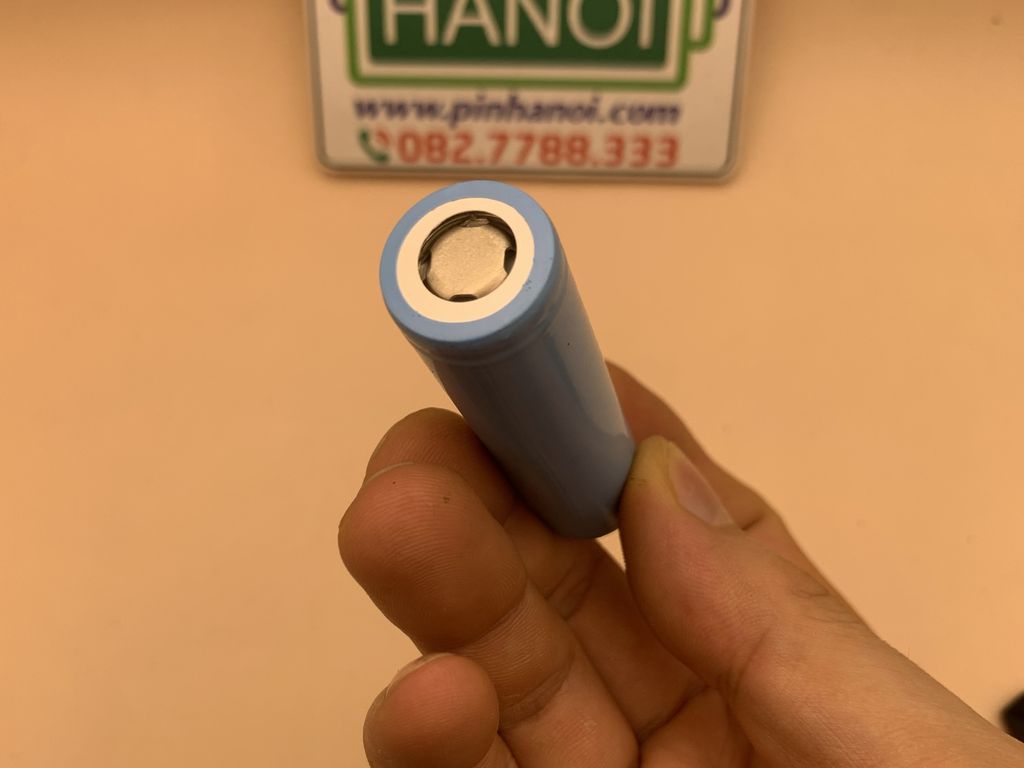

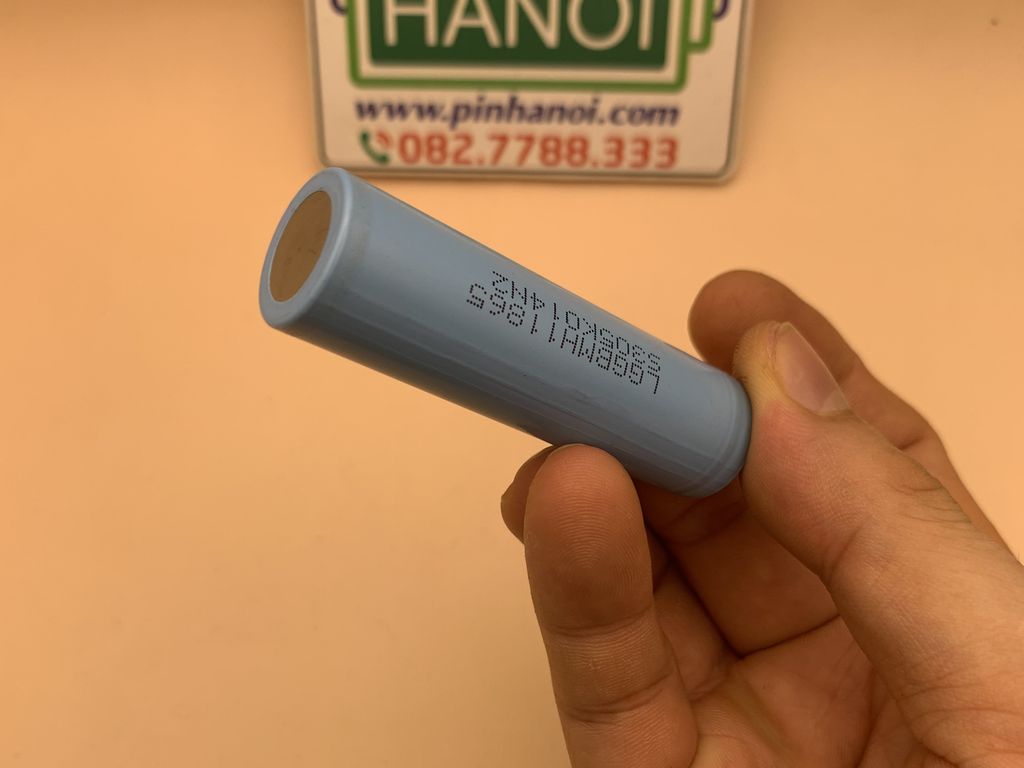

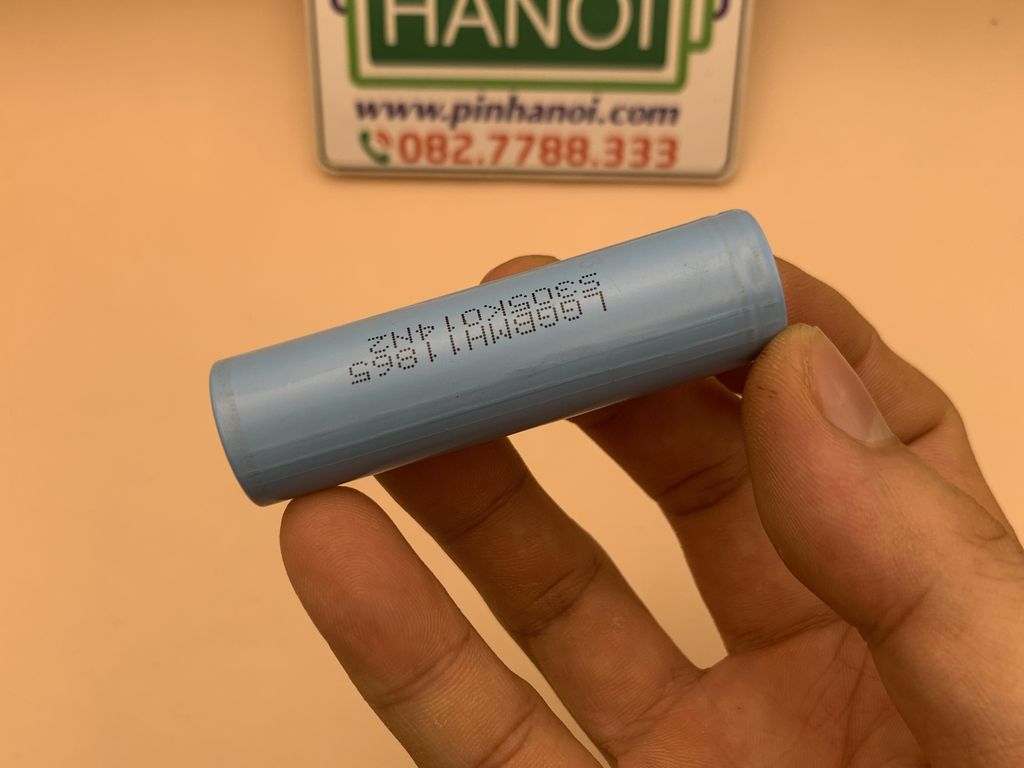

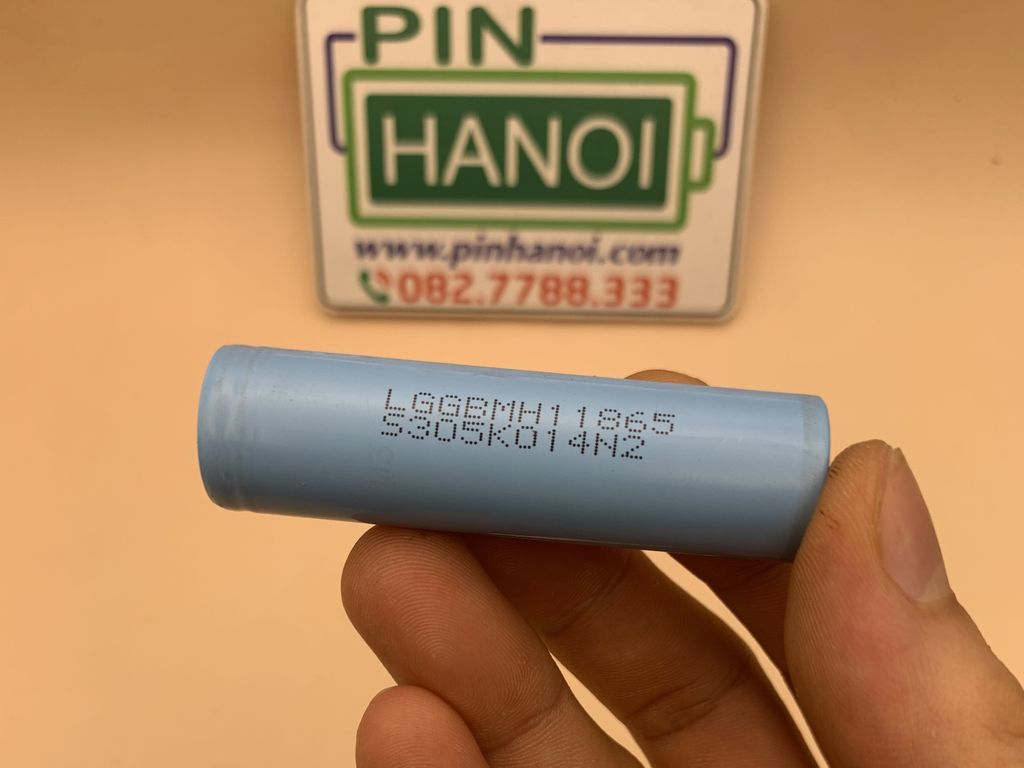

P/N: ION-LG1865-GBMH1-S1P1-11.74WH | ||
Applications: Power Tools; E.V. Type: Li-Ion; High Power MFR: LD Chemical | ||
No. | Descriptions of Parameter | Data |
1 | Voltage Rated | DC 3.67V |
2 | Peak Voltage on charging | 4.2V |
3 | Bottom Voltage on discharging | 2.5V |
4 | Capacity Rated | 3200Ah |
5 | Power Rated | 11.74Wh |
6 | Constant Discharge Current max. | 10A *3C5; |
7 | Constant Charge Current max. | 3.1A *1C5 |
8 | Top Shape | Flate |
9 | Dimensions:(Diameter * Height) | D.18mm; H.65mm |
10 | Weight | 48g |
11 | Resistance | 40mΩ |
